1. Small No-pallet Egg-laying Semi-automatic Design, Save Capital, Space and Labor

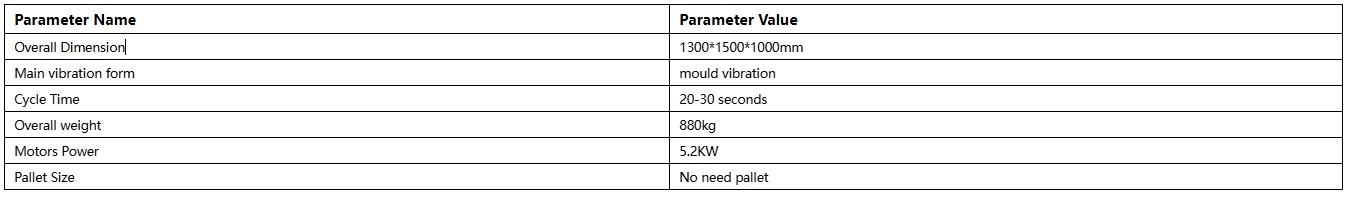

As a compact egg-laying brick machine, this model removes the entire pallet supporting system. Buyers are not required to purchase PVC, GMT or bamboo pallets, and there will be no pallet abrasion, breakage or periodic replacement cost during long-term production. It completely cuts the recurring pallet expenditure, which stands out as the biggest cost advantage for small family brick factories. The machine travels freely on hardened ground and directly forms blocks without pallet conveying circulation. With overall dimensions of 1300×1500×1000mm and total weight of only 880kg, this mini model occupies very little space. Production only requires 3000-5000 ㎡ of flat solid ground, with no complicated pallet storage tracks. It is perfectly suited for home-based workshops with limited space and solves site shortage issues for new small investors. The semi-automatic walking and molding control system is user-friendly and easy to master. Only 2 to 3 workers can finish feeding, machine movement operation and finished block stacking. Compared with large block production lines that require more operators, it significantly reduces daily labor expenses and fits small-scale family business operation perfectly.
2. Stable Vibration System & Heavy-duty Configuration for Long-term Reliable Operation
The machine uses an independent vibration box for mould vibration instead of direct motor drive, which prevents motor burnout and ensures smoother operation. Fitted with premium Taiwan Calyca hydraulic components, stable hydraulic pressure achieves uniform raw material compaction within a 20-30 second molding cycle. It produces high-density solid and hollow blocks free of honeycomb voids. The whole host frame is integrally welded from 12*12cm high-quality square steel supplied by Laigang and Jinggang Steel. Even under continuous mobile egg-laying vibration over years, the frame stays free from deformation and keeps stable forming precision. The total motor power is merely 5.2KW, helping small brick plants save electricity consumption.
3. Wide Raw Material Adaptability & Multi-spec Block Production to Boost Order Profit
This equipment accepts crushed stone, sand, cement, fly ash, slag, gangue and other industrial residues as raw materials. Brick manufacturers can make full use of low-cost local waste materials to replace part of cement and natural aggregates. This practice follows global circular economy environmental policies and greatly reduces raw material spending. The finished block height can be adjusted from 190mm to 250mm. One free hollow manganese steel mould is delivered together with the machine. Operators can switch different moulds to manufacture various hollow and solid bricks of diverse sizes. One machine supports multiple brick products to satisfy different small construction project orders.
4. Complete Supporting Package & Trustworthy Global After-sales Service
The full small production set includes QMJ4-30 main machine and JQ350 vertical mixer, featuring an 8mm thick tank and pure copper motor. The whole unit adopts nude packing for LCL shipment. Small buyers do not need to book a full container, which saves substantial ocean freight cost. The machine is covered by a one-year comprehensive warranty after on-site installation and commissioning. Flexible payment methods are available: 30% TT deposit with balance paid before shipment, or irrevocable sight L/C. Goods can be delivered within 25 days once deposit and mould specifications are confirmed, quoted on FOB Qingdao term.
1. Small No-pallet Egg-laying Semi-automatic Design, Save Capital, Space and Labor
As a compact egg-laying brick machine, this model removes the entire pallet supporting system. Buyers are not required to purchase PVC, GMT or bamboo pallets, and there will be no pallet abrasion, breakage or periodic replacement cost during long-term production. It completely cuts the recurring pallet expenditure, which stands out as the biggest cost advantage for small family brick factories. The machine travels freely on hardened ground and directly forms blocks without pallet conveying circulation. With overall dimensions of 1300×1500×1000mm and total weight of only 880kg, this mini model occupies very little space. Production only requires 3000-5000 ㎡ of flat solid ground, with no complicated pallet storage tracks. It is perfectly suited for home-based workshops with limited space and solves site shortage issues for new small investors. The semi-automatic walking and molding control system is user-friendly and easy to master. Only 2 to 3 workers can finish feeding, machine movement operation and finished block stacking. Compared with large block production lines that require more operators, it significantly reduces daily labor expenses and fits small-scale family business operation perfectly.
2. Stable Vibration System & Heavy-duty Configuration for Long-term Reliable Operation
The machine uses an independent vibration box for mould vibration instead of direct motor drive, which prevents motor burnout and ensures smoother operation. Fitted with premium Taiwan Calyca hydraulic components, stable hydraulic pressure achieves uniform raw material compaction within a 20-30 second molding cycle. It produces high-density solid and hollow blocks free of honeycomb voids. The whole host frame is integrally welded from 12*12cm high-quality square steel supplied by Laigang and Jinggang Steel. Even under continuous mobile egg-laying vibration over years, the frame stays free from deformation and keeps stable forming precision. The total motor power is merely 5.2KW, helping small brick plants save electricity consumption.
3. Wide Raw Material Adaptability & Multi-spec Block Production to Boost Order Profit
This equipment accepts crushed stone, sand, cement, fly ash, slag, gangue and other industrial residues as raw materials. Brick manufacturers can make full use of low-cost local waste materials to replace part of cement and natural aggregates. This practice follows global circular economy environmental policies and greatly reduces raw material spending. The finished block height can be adjusted from 190mm to 250mm. One free hollow manganese steel mould is delivered together with the machine. Operators can switch different moulds to manufacture various hollow and solid bricks of diverse sizes. One machine supports multiple brick products to satisfy different small construction project orders.
4. Complete Supporting Package & Trustworthy Global After-sales Service
The full small production set includes QMJ4-30 main machine and JQ350 vertical mixer, featuring an 8mm thick tank and pure copper motor. The whole unit adopts nude packing for LCL shipment. Small buyers do not need to book a full container, which saves substantial ocean freight cost. The machine is covered by a one-year comprehensive warranty after on-site installation and commissioning. Flexible payment methods are available: 30% TT deposit with balance paid before shipment, or irrevocable sight L/C. Goods can be delivered within 25 days once deposit and mould specifications are confirmed, quoted on FOB Qingdao term.
